Evaluating Your Site For Solar Energy

There are two basic questions to answer to determine if solar can work well at your location:

  1. Does your location get enough sun?
  2. Do nearby obstacles (trees, buildings, etc.,) at your location block too much sun?

The first question depends on how cloudy your weather is.  Within the US, almost all locations get enough sun to successfully use solar energy, but some are better than others.  This one page  solar resources map gives a rough idea of how good the solar resource is in your area.  More detailed month by month information on the sun available at US cities.

The 2nd question is the subject of the next section.  Its critically important that you through this site survey to make sure that you actually get good sun on your collectors enough of the day and enough to get good results.

Doing the survey is also a lot of fun!  A great family activity to learn more about the sun's movement through the sky.

Site Obstacle Survey

Not surprisingly, the sun must actually shine on a solar collector in order for it to collect useful energy.  More surprisingly, some solar projects are built that never meet expectations because obstacles block the sun.

Even if you think you get good sun, do the survey.  You may find some surprises (I did).

The summer solstice is the longest day of the year and occurs on June 21 in the northern hemisphere.  On this day the sun will rise well to the north of east, and will set well to the north of west.  The altitude of the sun at solar noon will be 23.5 degrees more than it was on the equinox -- or, 50 + 23.5 = 73.5 degrees in our Denver example.  This will be the highest that the noon sun will be in the sky all year.

Path of Sun Across the Sky

Note: If you never liked "Science Time", you may want to skip the next few paragraphs, and go right to "Obstacle Survey".

The path of the sun across the sky changes with the time of year.  This is why its important to do this obstacle survey, and not just stick your head out the window and see what the sun is shining on today.

At the two equinoxes, the sun rises due east and sets due west.  At solar noon on the equinoxes, the altitude of the sun is 90 minus the local latitude.  For example, if you live in Denver with a latitude of 40 degrees, the altitude of the sun at noon on the equinoxes will be 90 - 40 = 50 deg.   The length of the day on the equinox everywhere on the earth is 12 hours.  The spring equinox occurs on Mar 21, and the fall equinox on Sept 21.

The winter solstice is the shortest day of the year and occurs on Dec 21 in the northern hemisphere.  On this day the sun will rise well to the south of east, and will set well to the south of west.  The altitude of the sun at solar noon will be 23.5 degrees less than it was on the equinox -- or, 50 -23.5 = 26.5 degrees in our Denver example.  This will be the lowest that the noon sun will be in the sky all year.

The 23.5 degrees referred to above is the tilt of the earth axis of rotation relative to the plane of the earths orbit.  The summer solstice in the northern hemisphere occurs when the north pole is tilted toward the sun, and the winter solstice when the north pole is tilted away from the sun.

In planning a solar collector location, it is important to make sure that the sun will shine on the collector during all the parts of the year that you want it to.  That's what the following site survey will tell you.

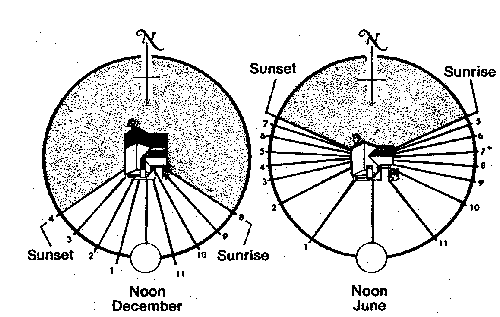

Diagrams showing sunrise/sunset positions for the summer and winter solstices, and the suns altitude at the solstices and equinoxes.

The obstacle survey lets you check for blockage of the sun by building, trees, hills etc.

You will need the following

  • A Sun Chart for your area (see below)
  • A device to measure elevation and azimuth angles (see below)

Sun Charts are available here: http://solardat.uoregon.edu/SunChartProgram.html .  Just enter your zip code, download the pdf version of the Sun Chart, and print it out.  The Sun Chart shows the position (azimuth and elevation) of the sun for every minute of the year -- all on one piece of paper!  It is worth spending a few minutes studying the Sun Chart, and understanding how it works.  It's a great way to check your understanding of the movement of the sun in the sky throughout the day and the year.

You will also need to make gages to measure the sun azimuth and elevation angles.

Make the Elevation gage

  • Paste one copy onto a piece of cardboard.
  • Trim the cardboard along the Site Line (you will site along this edge for elevation measurements)
  • Put a small nail through the center of the Reference Circle where all the lines meet
  • Tie one end of a light string to the nail, and the other end to any small weight (e.g. a bolt or nut)

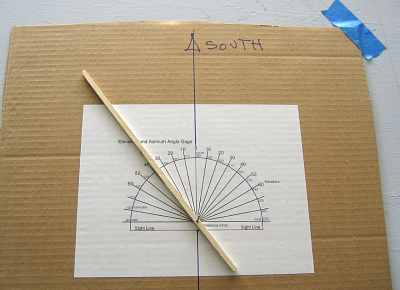

Make the Azimuth angle gage

  • Paste the other copy onto another piece of cardboard.
  • Find a thin, straight piece of wood (e.g. a wood pencil) and drill a small hole near one end.  You will site along this pointer to measure azimuth angles.
  • Put a small nail through the drilled hole, and then through the center of the reference circle.


Doing the Site Survey

Set up a reasonably level surface (e.g. a card table) about where your collector will be.

Tape the Azimuth angle gage to the table such that 180 on the blue azimuth scale faces true south.  Here are some ways to  determine where true south is.

Measure the azimuth and elevation angles for each of the high points along your horizon.  Start from northeast and work your way around through south to the northwest.   To measure the azimuth angle of a object, site along the pointer that you attached to the azimuth gage, and move it until it is lined up with the object.  Then read the azimuth angle off the azimuth gage where the pointer passes the azimuth angle number scale.  Measure the elevation angle for the same object by sighting along the Sight Line on the Elevation Gage.  Read the elevation angle where the string crosses the elevation angle scale.  Make sure that the string is not binding on the gage when you make the reading.   Mark the azimuth and elevation angles of each high point on the Sun Chart as you go with a dot.  Mark the position of the horizon on your sun chart by drawing lines between the elevation points you marked on the chart.

Personally, I think its nicer to get outdoors, and use the Sun Charts etc. as described in the first part of this section, but the computer model does offer some flexibility in moving things around and seeing the effect -- try both!

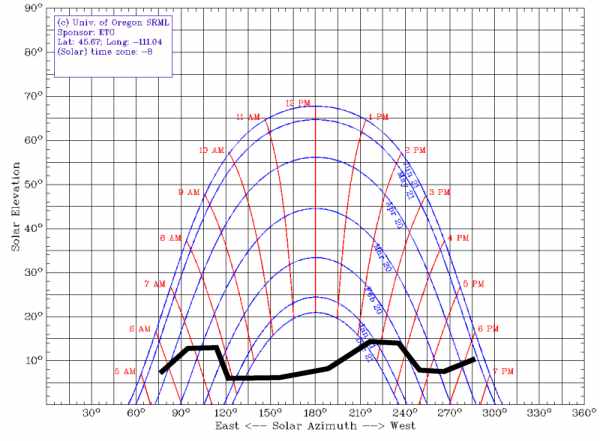

Sun chart with obstacle horizon marked.

Reading the Results

For most types of solar applications, you will be fine if you have 5 or 6 hours of unblocked sun that is roughly centered around solar noon.  If you have blockages during this 6 hour period, you need to evaluate how long they are, and at what times of year they occur.

If blockages are serious, then you can consider 1) moving the collector to a better location, 2) trimming the obstacle (good for trees -- not so good for buildings and mountains), or, 3) aiming the collector such that it gets more unobstructed sun -- for example, if the sun is good in the morning, but blocked in part of the afternoon, you could think about aiming the collector a bit east of south in order to get more morning sun.

For solar space heating applications, you must have good sun during the winter months (when the sun is the lowest and blockages are most likely).  For water heating, some blockage during mid-winter may be acceptable, since you would still get good water heating the rest of the year.

Blockages caused by deciduous trees may be acceptable for solar applications like space heating, in that the trees will let most of the light through when the leaves are gone in the winter.

If you want a quantitative look at how much a particular obstacle might hurt, run the Radiation On Collector tool.  Look at the hourly solar energy inputs, and see what percentage of the total solar input for the day that the obstacle blocks.

Photovoltaic panels can be particularly sensitive to partial shading.  Shading even a small part of a panel can significantly cut the panels output.

Also, bear in mind that trees grow.

An Alternate Approach

Another way to do the solar site survey is to build a simple model of your house and of any obstacles that may block the sun using a computer graphic tool that is capable of showing the how the sun will shine on the house  or collector at any time of day for the full year.

One very easy to use and free program for doing this is the SketchUp drawing tool that is a free download at Google ... more info on SketchUP  If you want to get an idea if this is the right approach for you, try the 10 minute, 3 part tutorial that comes up when you first run SketchUp -- part 2 or part 3 shows how to use the built in "sun" tool to generate solar shadows on your model.
